Omschrijving
HDMI 2.0 (18Gbps) 4K60 4:4:4 in and out
HDMI Loop-out + HX outputs
1080p to 150m, 4K60 to 120m over single cat6 cable
HDR, HDR10, HDR10+, HLG and Dolby vision
Down Scaler – 4K to 1080p
Bi-directional IR
RS232 pass-through and control
CEC pass-through
Audio Analogue De-embedder
EDID and HDCP Control/management
Test Pattern Generator – Various patterns
VKA (Video Keep Alive)
PoC – Power from either end

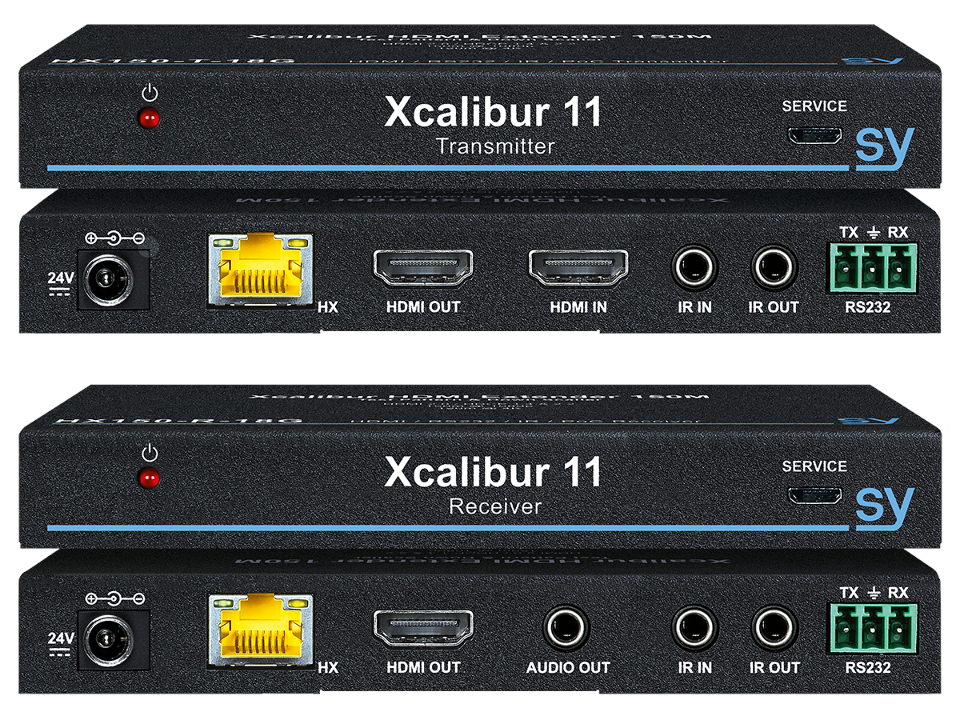

CONNECTORS:
SY-HX150-11-18G Transmitter
1x Micro USB for configuration or update
1x RJ45 HX Output
1x HDMI Output – Loop output to local display
1x HDMI Input – Input from the Source device
1x 3-way Screw Terminals for bi-directional RS232 pass through
1x 3.5mm TRS IR Input
1x 3.5mm TRS IR Output
1x 24V DC Power input (2.1mm barrel jack)
SY-HX150-11-18G Receiver
1x Micro USB for configuration or update
1x RJ45 HX Input
1x HDMI Output – To display device
1x 3.5mm TRS Audio Output – Analogue Stereo L/R Audio
1x 3-way Screw Terminals for bi-directional RS232 pass through
1x 3.5mm TRS IR Output
1x 3.5mm TRS IR Input
1x 24V DC Power input (2.1mm barrel jack)
WHAT’S IN THE BOX
1x SY-HX150-11-18G T
1x SY-HX150-11-18G R
2x Pairs of mounting plates
2x 3-way Screw Terminal Connectors
1x IR Emitter
1x IR Receiver
1x 24V 1A Power Supply
1x User manual
Technische specificaties
Xcalibur-11 Set (Transmitter and Receiver)
Transmission Distance
1080p to 150m, and 4K to 120m, using cat5e/6/6a/7
PoC (24V) on all HX outputs
HDMI VERSION
Input: HDMI 2.0 (18 Gbps) - HDR, HDR10, HDR10+, HLG and Dolby Vision Formats supported
Output: HDMI 2.0 (18 Gbps) - HDR, HDR10, HDR10+, HLG and Dolby Vision Formats supported
HDCP COMPLIANCE
Input HDCP: Accepts all versions up to HDCP 2.2
Output HDCP: Fully controlled – Pass through, 1.4, 2.2, Cascade mode
RESOLUTIONS / FORMATS
Input resolutions:
All HDMI and PC resolutions up to 4K2K 60Hz 4:4:4
Colour Space:
Pass through of RGB, YCbCr 4:4:4, 4:2:2, 4:2:0
Colour Depth:
8, 10, 12 bits
SCALER
Down-Scaling (Resolution):
4K inputs scaled down to 1080p
AUDIO
Audio Formats Supported:
2.0 / 2.1 / 5.1 / 7.1 channel LPCM, Dolby, AC3, DTS
De-embedded Audio out: (Receiver)
3.5mm Jack Socket - Analogue Stereo (L/R)
CONTROL
IR In, IR Out –
Universal, 25-60 KHz carrier frequency
RS232 Pass-through –
Tx, Rx – Any baud rate to maximum of 115200~
RS232 Control
USB Service Port Settings
115200 baud, 8 data bits, 1 stop bit, no parity - for all control commands through the USB Service Port.
