Description
PORTRAIT TONDO is a battery-powered (or mains-powered) PAR with IP65 protection rating, specifically designed for outdoor use even for long durations. The lighting emitting system consists of 6pcs 10W RGBWA+UV 6in1 high-brightness LEDs with a life-span of approximately 50,000 hours.
The Dimmer control is with adjustable refresh rate from 600Hz to 24kHz, and allows this PAR to be used even in video and broadcast applications. Each LED features high-quality lens with 25° beam angle and 39° field angle, making the PORTRAIT TONDO ideal for wash or beam use.
The two adjustable brackets are designed to enable the fixture to be placed on the ground or mounted on trusses. Both Power In/Out and DMX In/Out connections are completely waterproof and equipped with rubber plugs to prevent entry of liquids or moisture.
The die-cast aluminum frame allows both water-tightness and total heat dissipation even in case of operation in the sun. Therefore, no fans are need making the PORTRAIT TONDO completely silent.
The high-efficiency lithium battery guarantees a complete charge from zero within about 4-5 hours and a duration of about 6 hours at full color; around 8 hours at running preset programs or DMX; around 12 hours at running single color. The wireless DMX feature and the infrared remote control allow all units to be controlled without the use of wired DMX units.
Key features
6x 10W RGBWA+UV 6in1 high-efficiency and long-life LEDs
25° Beam angle; 39° Field angle
Flicker-Free Operation with adjustable refresh rate
Waterproof Powercon In/Out and 3-pin XLR DMX In/out Connections
Wireless DMX operation
IR remote control
Die-Cast Aluminum Housing for IP65 rating and Fan-less operation
Rechargeable Lithium-Ion Battery for up to 12 hours operation

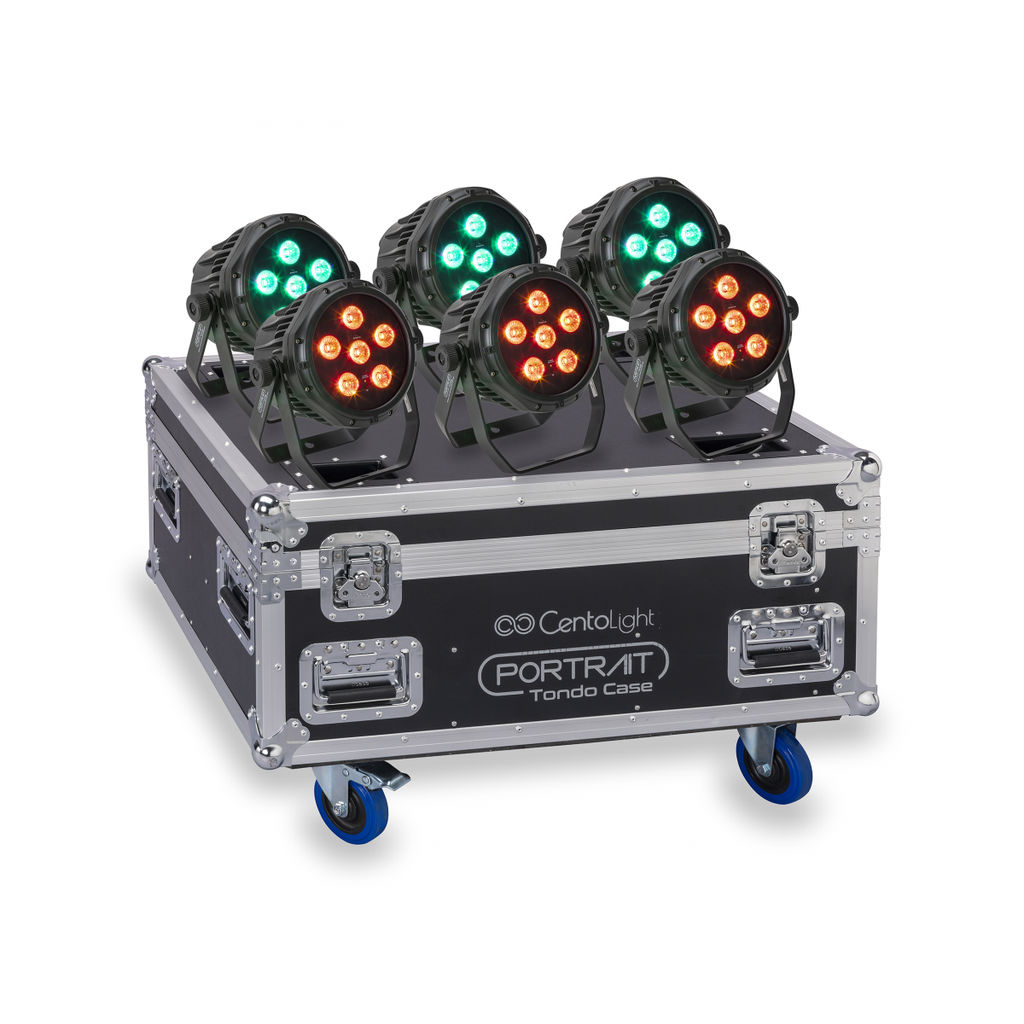

6-Units Flight Case with Recharge Function
Technical specifications
Light Source 6x 10W RGBWA+UV 6in1 high-efficiency LEDs
Led Life Span 50,000 hours
Beam angle 25°
Field angle 39°
Flicker Free Yes (adjustable refresh rate from 600Hz to 24kHz)
Control Modes DMX512, Master/Slave, Stand Alone, IR Remote Control
DMX Channels 6Ch or 10Ch control modes, selectable
DMX Connections 3-Pin XLR Input/Output (IP65)
Control panel 4x character LED display + 4 Buttons
Housing Die-Cast Aluminum Housing
IP rating IP65
Cooling Natural cooling with silent operation
Housing color Black
Power input 100-240VAC 50/60Hz
Power Consumption 65W
Voedingsingang/-uitgang PowerCon-ingang/uitgang (IP65)
Battery Type Rechargeable Lithium-Ion Battery
Charge Time About 4.0 - 5.0 hours
Battery life Around 6 hours at full color from one full charge, around 8 hours at running preset programs, around 12 hours at running single color
Fixture Size (WxDxH) 280 x 246 x 180mm (11.02 x 9.68 x 7.09 inch)
Net weight 4.0 kg – 1.81 lbs
Flightcase Power input 100-240VAC 50/60Hz
Flightcase Power consumption Max. 400W
Flightcase Fuse F10A-250V
Flightcase Power In/Out Connections Powercon Input / Output
Flightcase Afmetingen (BxDxH) 880 x 650 x 510 mm
Flightcase Weight 61 kg - 134.48 lbs. (including 6 Pars and accessories)
